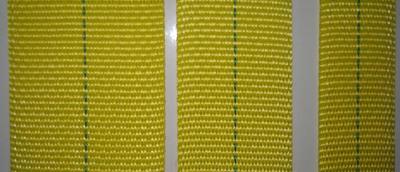

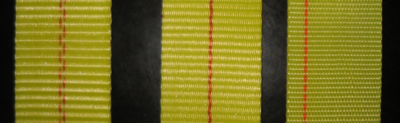

Soft Sling Webbings
We have wide range of webbings from tested high tenacity polyester yarn and complete range of polyester webbings for web slings and tie downs from 25mm to 300mm width. The webbings are manufactured as per American Standards and European Standards and are available in rolls of 100m or any cut length as per customer's requirements. Both weaving, Dyeing, customized printing and stretching facilities for webbings are very professional.
European style flat
| No. | Spec.safety factor(7:1) | Color | Width/mm | Breaking strength (ton) |
|
| 1 | 1T | Violet | 30 | 4.5 |
|
| 2 | 2T | Green | 60 | 8.9 |
|
| 3 | 3T | Yellow | 90 | 13.5 |
|
| 4 | 4T | Grey | 120 | 18.0 |
|
| 5 | 5T | Red | 150 | 22.0 |
|
| 6 | 6T | Brown | 180 | 26.9 |
|
| 8 | 8T | Blue | 240 | 36.0 |
|
| 10 | 10T | Orange | 300 | 43.5 |
|
European Style Round Sleeves
| No. | Spec.safety factor(7:1) | Color | Width/mm |
|
| 1 | IT round sleeves | Violet | 45 |
|
| 2 | 2T round sleeves | Green | 49 |
|
| 3 | 3T round sleeves | Yellow | 65 | |
| 4 | 4T round sleeves | Grey | 74 |
|
| 5 | 5T round sleeves | Red | 80 |
|
| 6 | 6T round sleeves | Brown | 89 |
|
| 10 | 10T round sleeves | Orange | 107 |
|
| 31 | Singe eye protection | Grey | 108 |
|
American Style Flat Sling Webbing
| No. | Width (inch) | Lbs/inch | Color |
| 1 | 1 | 9800 | Yellow |
| 2 | 2 | 9800 | Yellow |
| 3 | 3 | 9800 | Yellow |
| 4 | 4 | 9800 | Yellow |
| 5 | 5 | 9800 | Yellow |
| 6 | 6 | 9800 | Yellow |
| 7 | 8 | 9800 | Yellow |
| 8 | 10 | 9800 | Yellow |
| 9 | 12 | 9800 | Yello |
European Style Tie Down Webbings
| No. | Breaking strength （tons）
| Color | Width/mm |
| 1 | 5 | any color | 50 |
| 2 | 6 | any color | 50 |
| 4 | 7.5 | any color | 50 |
American style tie down webbings
No.
| breaking strength(1bs) | color | width/inch | mark line |
|
| 1 | 6000 | yellow | 2 | one line in the edge |
|
| 2 | 10000 | yellow | 2 | one line in the middle |
|
| 3 | 20000 | yellow | 4 | one line inthe middle |
|
| 4 | 12000 | yellow | 2 | one line in the middle |
|
| 5 | 18000 | yellow | 3 | one line in the middle |
|
| 6 | 24000 | yellow | 4 | one line in the middle |
|
